Shear Strength Testing (Triaxial)


Shear Strength Testing (Triaxial)

Three main types of triacial testing (typically assumes isotropic materials):


- Unconsolidated Undrained (UU)

- Consolidated Undrained (CU)
Extension tests availble

-Consolidated Drained (CD)

2014-05-24

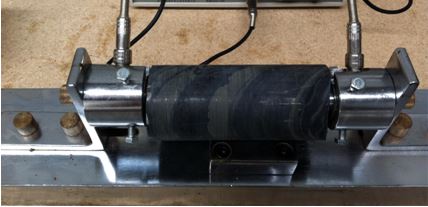

Ultrasonic Velocity Testing

Ultrasonic Velocity Testing

- Ultrasonic Velocity Testing (ASTMD2845 or ISRM)

- Used extensively in Coal and Oil and Gas Industries (well bedded deposits with minimal micro-fracturing)

- Applied for isotropic rocks or rocks having slight anisotropy



2014-05-24

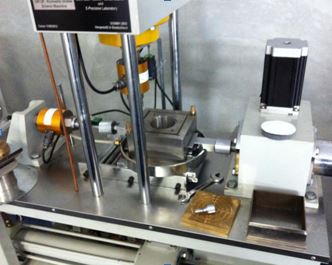

Direct Shear Testing



Direct Shear Testing


- Saw Cut

- Barton Comb Multiple Cross Section of Defect can be Drawn upon request with JRC given at no extra charge

- Intact Rock Shearing to obtain residual strengths



2014-05-24

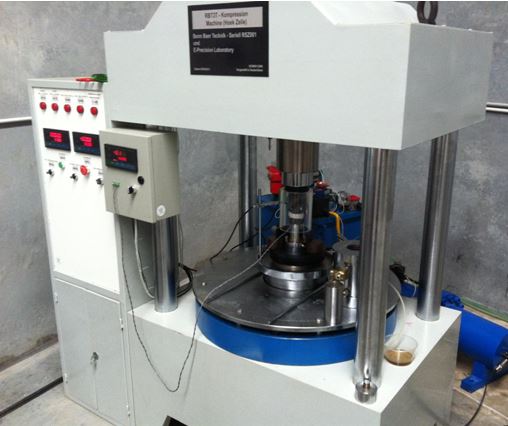

Intact Rock Testing



Intact Rock Testing

- Unconfined Compression Strength

- UCS with Young’s Modulus & Poisson’s Ratio  - Brazilian Test (Indirect Tensile Test)

- Hoek Triaxial Cell (50.6mm, 61.8mm and 83.1mm)












2014-05-24
